Product Description

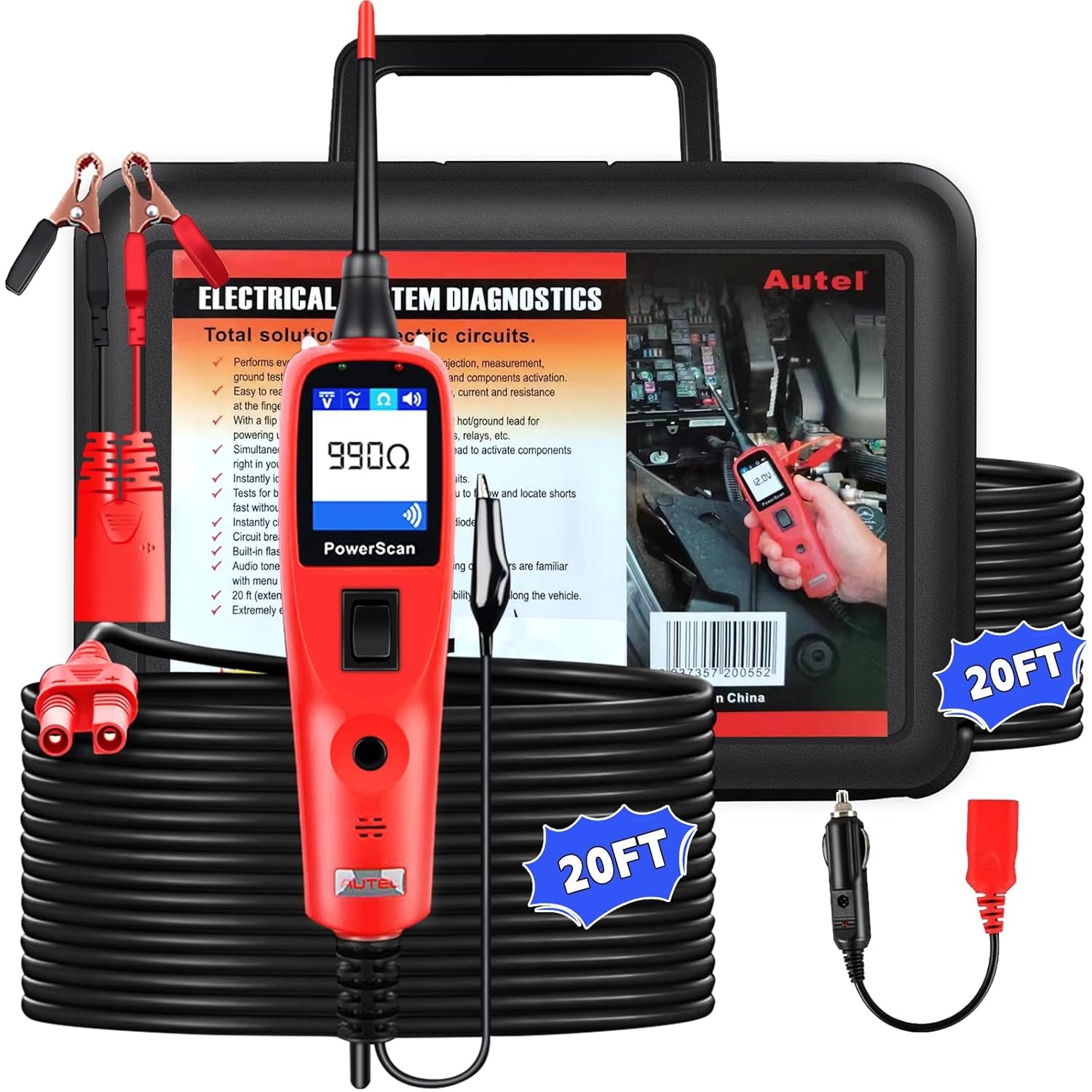

Autel PowerScan PS100 Universal Automotive Circuit Testing Kit
Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan is truly the ultimate in power and affordability. Autel PowerScan can work for all 12V-24V power source eletrical system.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
One-Click Working Modes Switching!
Autel PowerScan Eletrical Analysis Tool Hot Functions
Autel PowerScan PS100 Practical Features!
Wide Compatibility: Autel PS100 Is Able to Work on Various Eletrical Platforms !
Autel PS100 Automotive Circuit Teste can be used to test almost all 12V-24V electric devices including motorcycle, motorboat, large trucks and so on. Autel PS100 is a must have tool for every technician looking for a fast and accurate solution to electrical system diagnostics.
Autel Automotive Diagnostic Tool Recommendations !
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.3 out of 5 stars
284
—
4.3 out of 5 stars
117
4.3 out of 5 stars
117
4.3 out of 5 stars
28
3.8 out of 5 stars
5
3.6 out of 5 stars
4
Price
$479.00$479.00
—
$549.00$549.00
$649.00$649.00
$899.00$899.00
$959.00$959.00
$1,159.00$1,159.00
Battery Capacity
5000 mAh
7700 mAh
5000 mAh
5000 mAh
5000 mAh
7700 mAh
7700 mAh
Connection Method
Wire
Wire
Wire + Wireless VCI
Wire + Wireless VCI
Wire + Wireless VCI
Wireless VCI
Wireless VCI
Camera
8MP
NO
NO
NO
NO
8MP
8MP
Software Update Subscription
1 Year
1 Year
1 Year
1 Year
2 Year
1 Year
1 Year
Services Function
28+
40+
28+
28+
31+
40+
40+
Module Adaptation, Relearn
✔
✔
✔
✔
✔
✔
✔
Bi-Directional Control
✔
✔
✔
✔
✔
✔
✔
Wi-Fi Print, Pre & Post Scan
✘
✔
✘
✘
✘
✔
✔
DoIP/CAN FD Protocol
✘
✘
✘
✘
✘
✔
✔
VIN / License Plate Scan
✘
✔
✘
✘
✘
✔
✔
TPMS Function
Basic & Limited
Basic & Limited
Basic & Limited
Professional
Professional
Basic & Limited
Professional
ECU Coding
✘
✘
✘
✘
✘
✔
✔
Package Dimensions : 9.88 x 7.52 x 3.78 inches; 3.68 ounces
Item model number : AO-PPS100
Date First Available : March 29, 2024
Manufacturer : Autel
ASIN : B0CZDPJSGV
Country of Origin : China

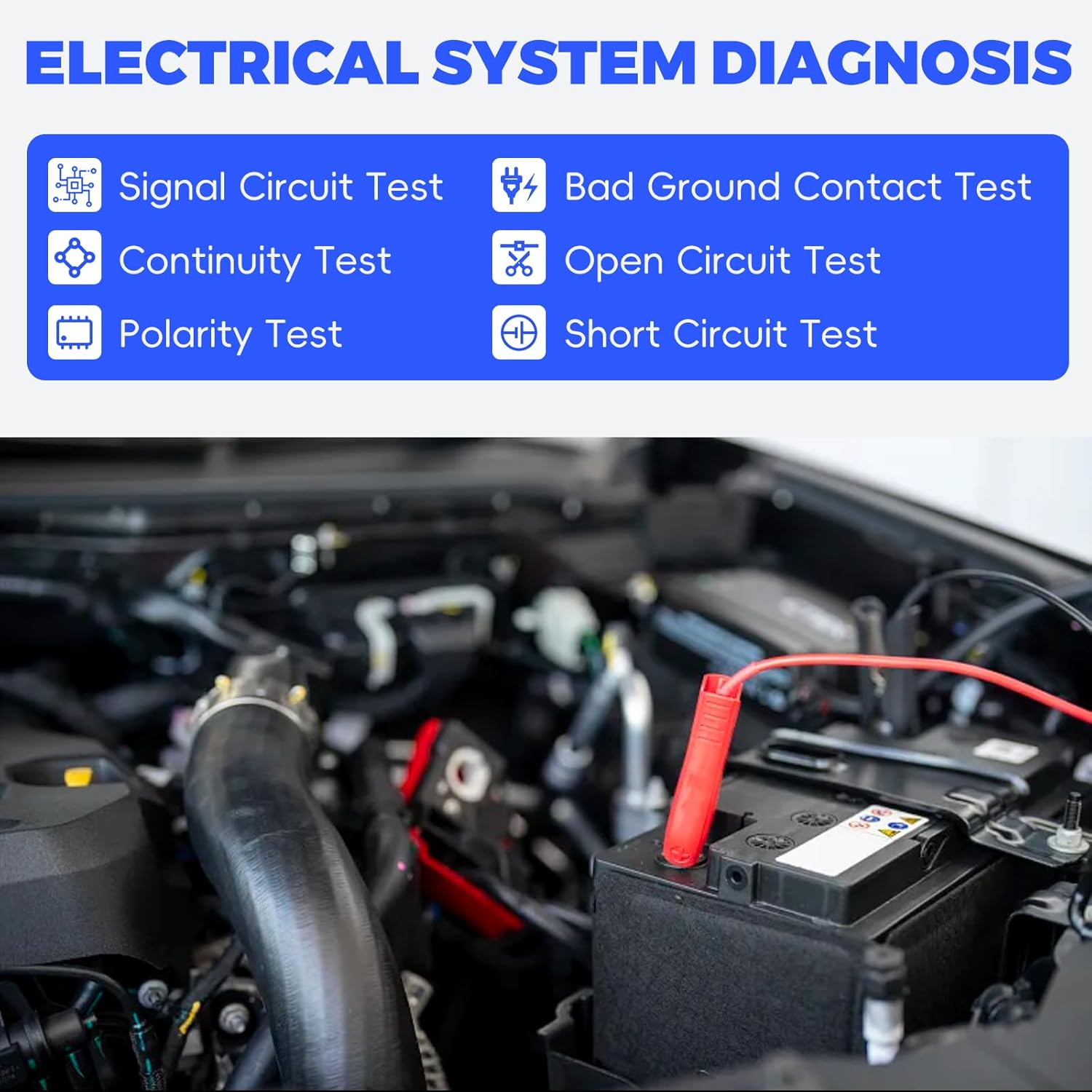

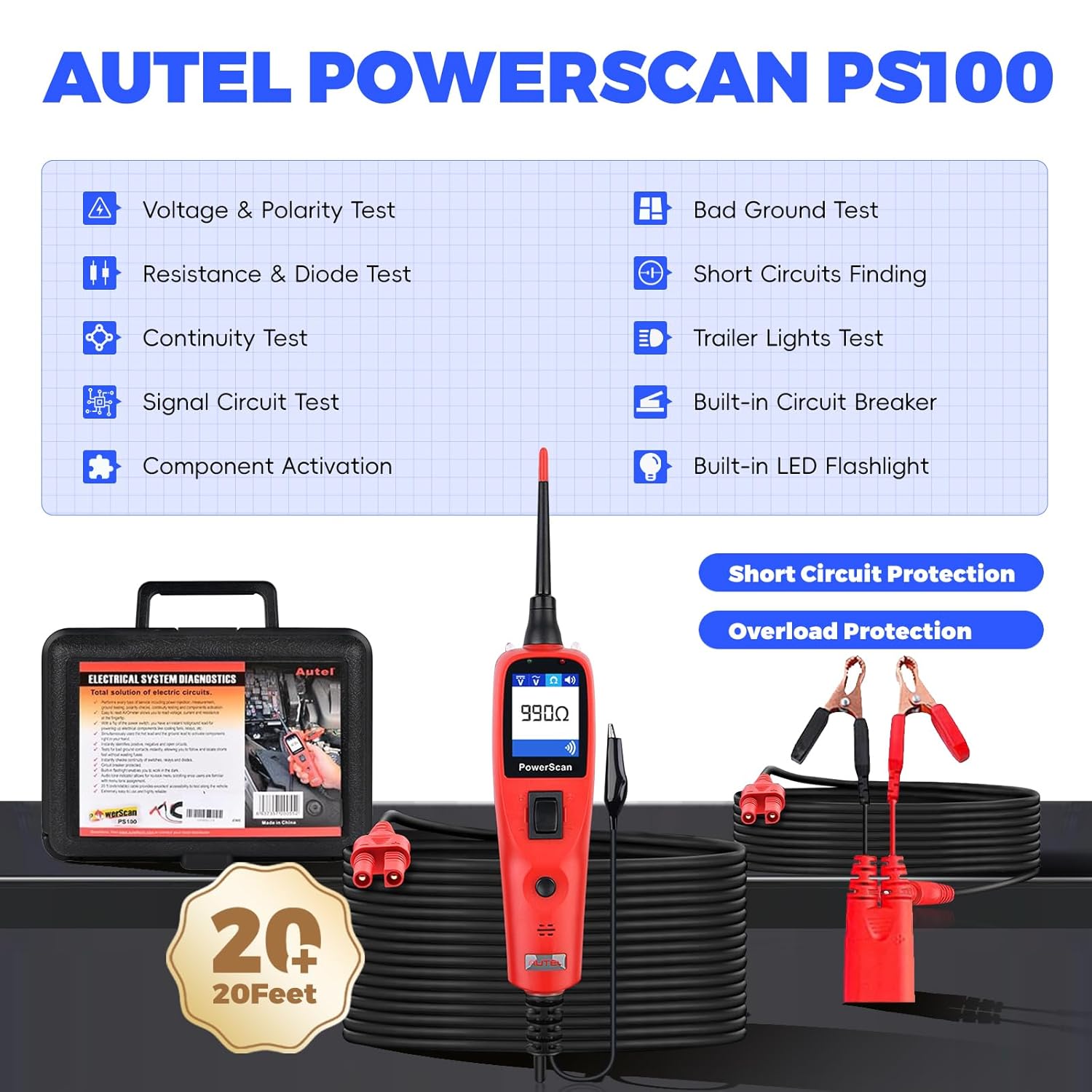

Autel PowerScan is an universal automotive electrical system diagnostic tool offering quick complete diagnose solution for all 6- to 30-volt vehicle electrical systems, featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan is powerful yet affordable, allowing users to check circuitry in one single step. A good-to-have tool for technicians.

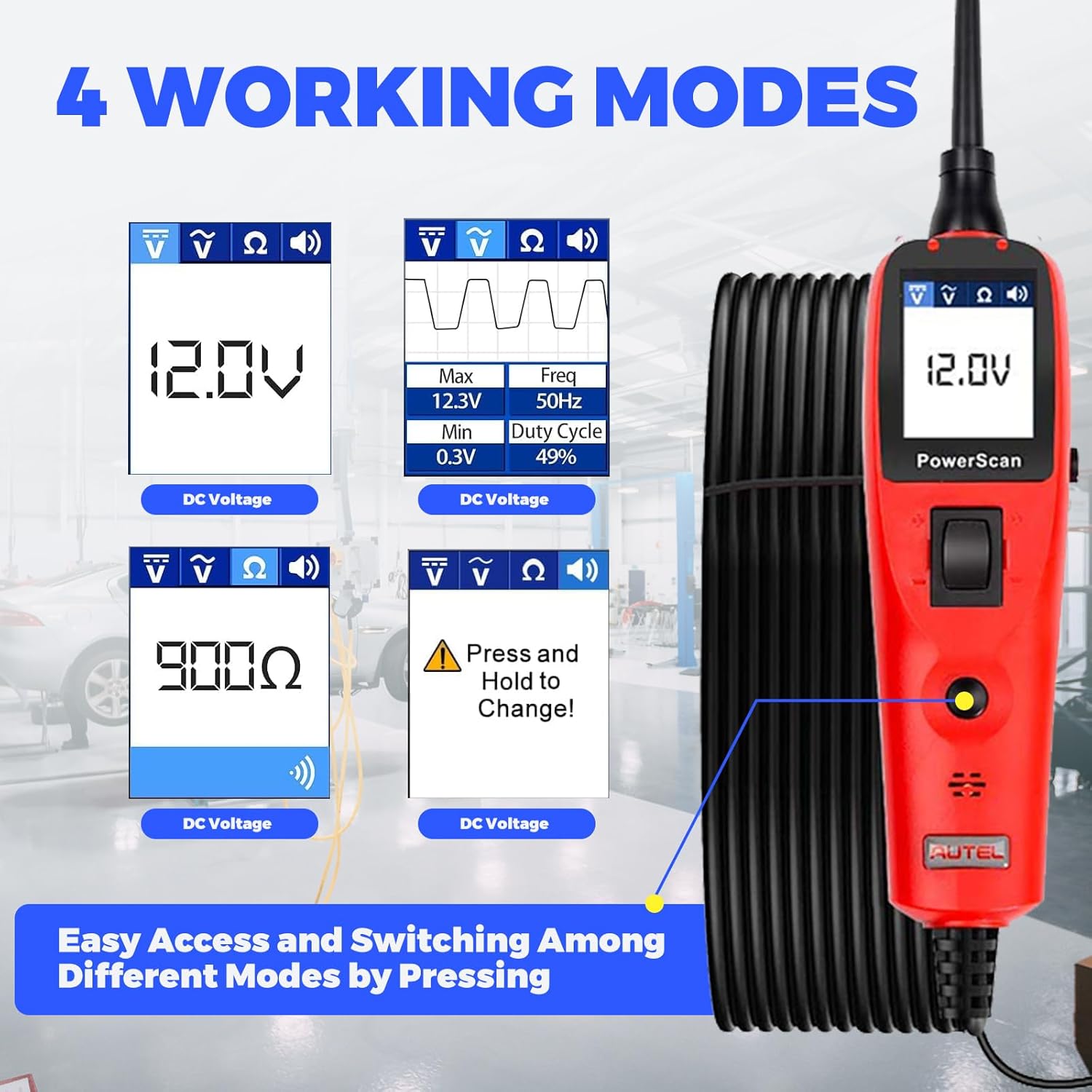

Autel PS100 Circuit Tester support four working modes: DC voltage, AC voltage, Resistance and Tone On/Off. In AC voltage, PS100 can read the Max. voltage, the Min. voltage, frequency and duty cycle; In Resistance mode, it reads the resistance between the tip and auxiliary ground lead. In Tone On/Off, you can turn off the annoying noise when the tool will be connected to circuits for a long time. Quick switching among 4 modes by pressing mode button.
Autel PS100 Power Circuit Probe Kit support component activation in 3 different scenario: in the hand, in the vehicle & with ground. By generating activation signals for the components, you can judge whether the components are in good condition, such as lights, motors, wipers, radiator fans, relays, and fuel injectors, etc. You can also use Autel PS100 circuit checker to find bad ground contact. The response of LED lights can intuitively tell you whether it’s true ground.

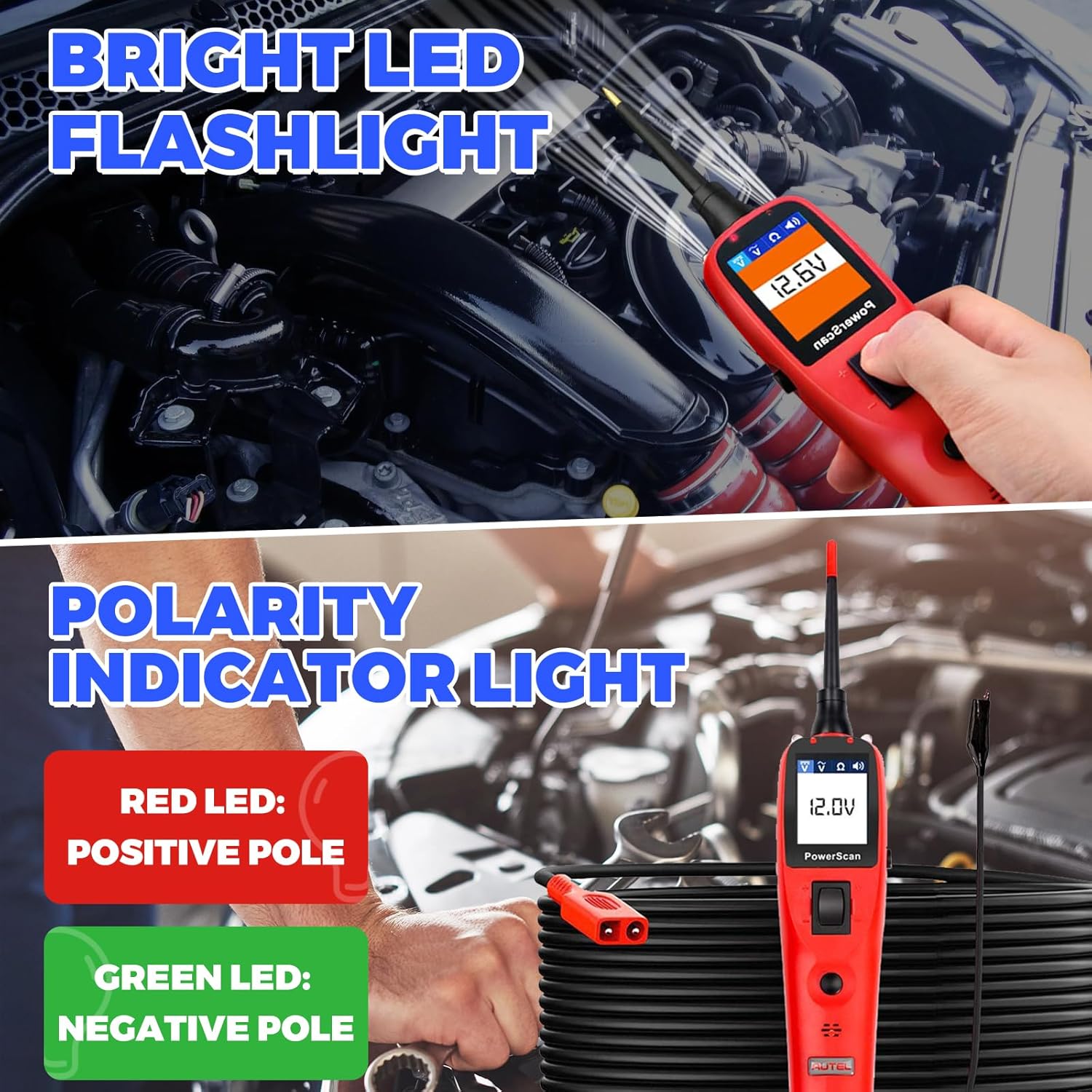

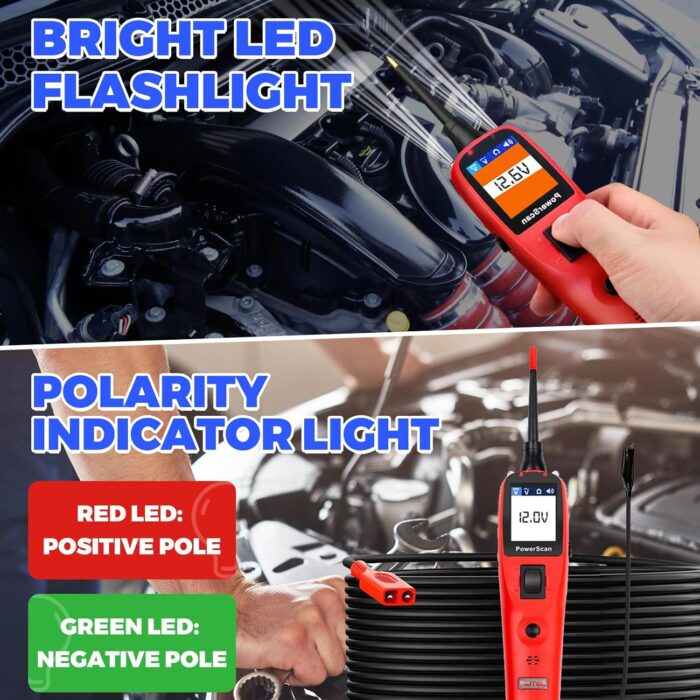

In just a few seconds, Autel PS100 car circuit tester can checks component continuity and identifies positive, negative and open circuits. When the positive terminal is connected, the red LED light is on, accompanied by a beep. When the negative terminal is connected, the green LED lights up, along with low pitched tone. If it is an open circuit, the LED light will not light.
Autel PowerScan PS100 is short-circuit protected. Its internal circuit breaker will trip if it becomes overloaded. The circuit breaker is a valuable test tool as well as a safety measure to protect the tool from overload. To protect your components, Autel PS100 can also perform a quick self-test. After flipping the switch forward or backward, the LED light and tone will respond to quickly check its actual operating status.
Autel PS100 circuit testing kit comes with built-in flashlight for convenient detection in dark or at night. The extra 20 feet extension cable ensures provides excellent accessibility to test along large vehicles and the entire circuit system of the vehicles can be tested at ease.
